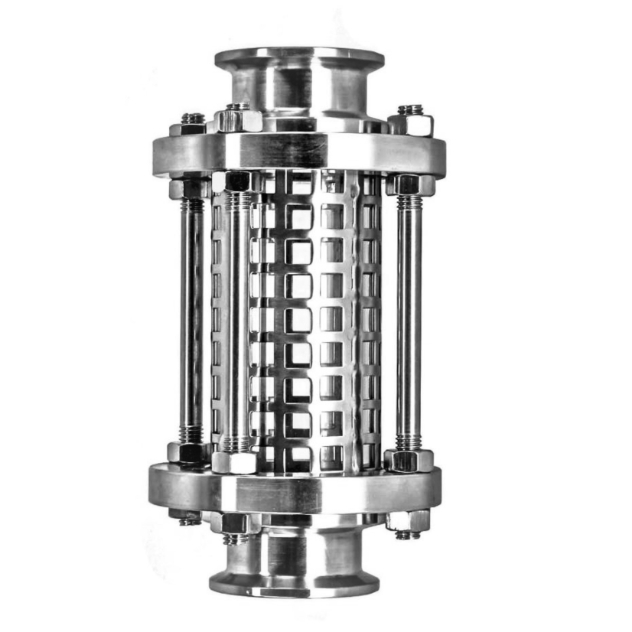

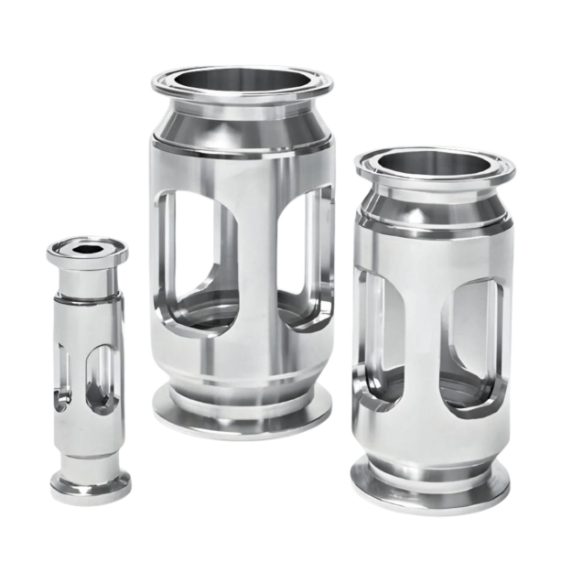

Sanitary Straight Sight Glass
The Puremetix Sanitary Straight Sight Glass is engineered for critical hygienic applications across pharmaceutical, biotechnology, food processing, and beverage industries. This premium sight glass provides reliable visual monitoring of process fluids while maintaining the highest sanitary standards.
Details about Sanitary Straight Sight Glass
| Specification Name | Specification Value |
|---|---|
| Construction & Materials | Puremetix constructs this sight glass using premium 316L stainless steel housing with electropolished surfaces achieving Ra ≤ 0.5 μm finish. The viewing window utilizes high-grade borosilicate glass, providing excellent chemical resistance and thermal shock protection. All wetted surfaces feature smooth, crevice-free design to prevent bacterial harboring and ensure complete drainability. |
| Sanitary Design Features | The Puremetrix sight glass incorporates tri-clamp (tri-clover) end connections for secure, leak-proof installation and easy disassembly during maintenance. The gasket seats are precision-machined to accommodate standard EPDM, silicone, or Viton O-rings. Self-draining design eliminates dead legs and stagnant areas, supporting effective Clean-in-Place (CIP) and Steam-in-Place (SIP) procedures. |
| Performance Specification | Puremetix engineers this sight glass to withstand demanding process conditions with typical pressure ratings up to 150 PSI and temperature ranges from -20°C to +150°C. The robust construction ensures long-term durability while maintaining optical clarity for consistent process monitoring. |
| Applications & Compliance | Ideal for monitoring fluid levels, flow patterns, color changes, and phase separation in sterile processing environments. The Puremetix Sanitary Straight Sight Glass complies with FDA, 3-A Sanitary Standards, and ASME BPE requirements, making it suitable for validation-critical pharmaceutical and bioprocessing applications. |
| Quality Assurance | Each Puremetix sight glass undergoes rigorous quality testing including pressure testing, surface finish verification, and dimensional inspection to ensure consistent performance and reliability in demanding sanitary applications. |
Sanitary Straight Sight Glass Description :
High-quality stainless steel sight glass designed for hygienic process monitoring in pharmaceutical, food, and beverage applications. Features clear borosilicate glass window for visual inspection of fluid flow, level, and color. Tri-clamp connections ensure easy installation and cleaning. Meets sanitary design standards with smooth, crevice-free surfaces for optimal cleanability and sterility. Ideal for CIP/SIP processes and critical sanitary applications requiring visual process control.
